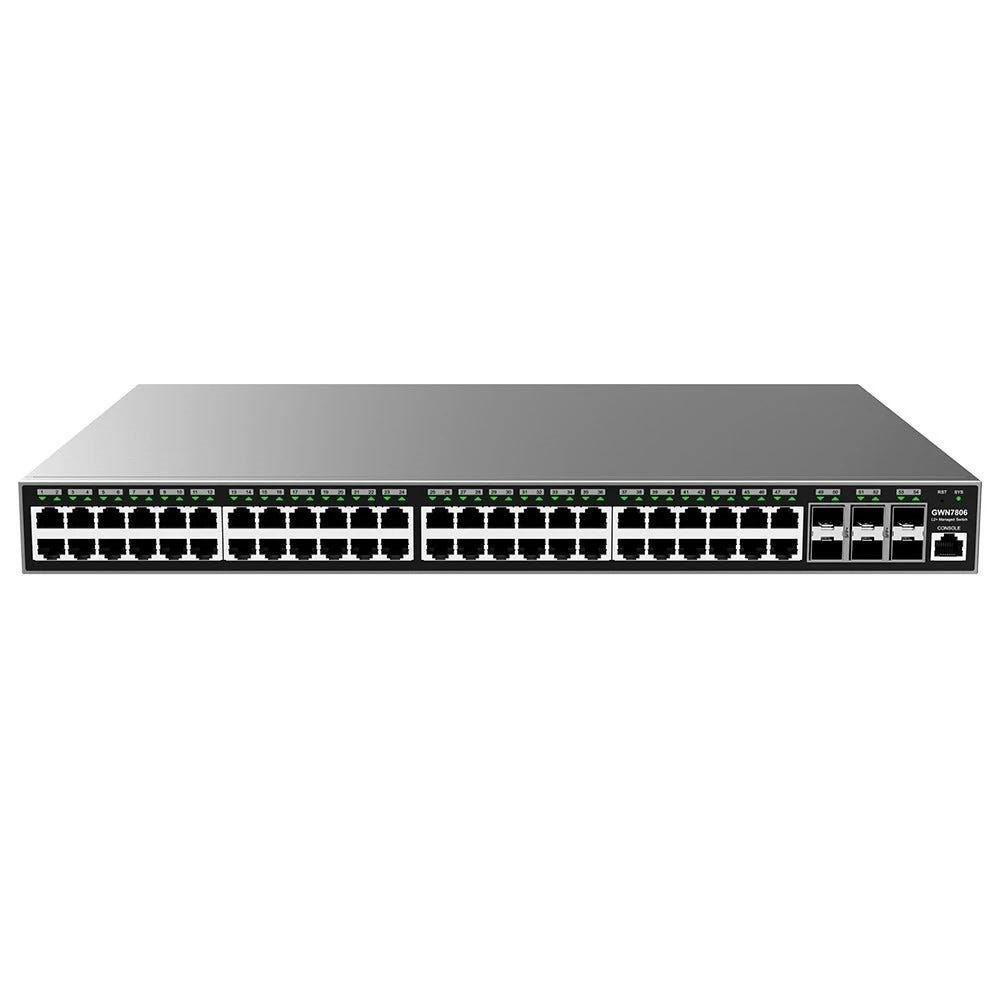

The Grandstream GWN7806 is a high-performance Layer 2+ managed network switch designed to empower small-to-medium enterprises with a scalable, secure, and intelligent networking foundation. Featuring 48 Gigabit Ethernet ports and 6 elite 10Gigabit SFP+ ports, it delivers a massive 216Gbps switching capacity to handle data-intensive applications with ease. This switch is the ideal backbone for businesses requiring high-speed fiber uplinks and extensive copper connectivity without the need for PoE.

Management is streamlined through multiple avenues, including a local web interface, CLI, or Grandstream’s powerful cloud and on-premise platforms, GWN.Cloud and GWN Manager. The GWN7806 supports advanced VLAN for sophisticated traffic segmentation and state-of-the-art QoS to ensure that critical voice and video traffic always receives priority. Its stacking capability allows for the unified management of up to 16 switches, greatly reducing administrative overhead as your infrastructure grows.

Security is at the forefront of the GWN7806 design, featuring a comprehensive suite of protections including 802.1X authentication, DHCP Snooping, and IP Source Guard. These multi-layer security protocols defend your network against common threats like DoS attacks and ARP spoofing, providing a hardened environment for sensitive business data. Reliability is further bolstered by dual-boot support and dual system file redundancy, ensuring maximum uptime and resilient performance in demanding environments.

Built for efficiency and longevity, the GWN7806 incorporates smart energy-saving technology and a robust thermal design with three integrated fans. Its rack-mountable form factor and included mounting kits make it ready for professional server room installation right out of the box. With its combination of high-density port counts, 10G uplinks, and enterprise-grade management features, the GWN7806 stands as a premier value-driven solution for modern Australian business networks.

FEATURES

• 48 Gigabit Ethernet ports and 6 10Gigabit SFP+ ports
• 216Gbps total switching capacity for high-speed data handling
• Advanced Layer 2+ management including static routing and 4K VLANs
• Comprehensive security with ARP Inspection, IP Source Guard, and DoS protection
• Flexible management via GWN.Cloud, GWN Manager, or local Web UI
• Supports stacking for easy management of up to 16 switches
• Reliability features including dual boot and dual system file redundancy

SPECIFICATIONS

• Gigabit Ethernet Ports: 48
• 10G SFP+ Ports: 6
• Console Port: 1
• Switching Capacity: 216Gbps
• Total Non-blocking Throughput: 108Gbps
• Forwarding Rate: 160.704Mpps
• Packet Buffer: 16Mb
• MAC Address Table: 32K (Static, Dynamic, Filtering, Sticky)
• VLANs: 4K (Port-based, 802.1Q, MAC-based, Protocol-based, Voice)
• Multicast: IGMP Snooping (v1/v2/v3), MLD Snooping (v1/v2)
• Quality of Service: Port priority, Queue scheduling (SP, WRR, WFQ)
• Security: 802.1X, RADIUS, AAA, TACACS+, SSH, HTTPS
• Mounting: Desktop or 1U Rack-mount (Kits included)
• Power Supply: Internal 60W (100-240VAC, 50/60Hz)
• Fans: 3
• Dimensions: 440x301x44mm
• Weight: 4.0kg

WARRANTY

3-Year Limited Warranty
