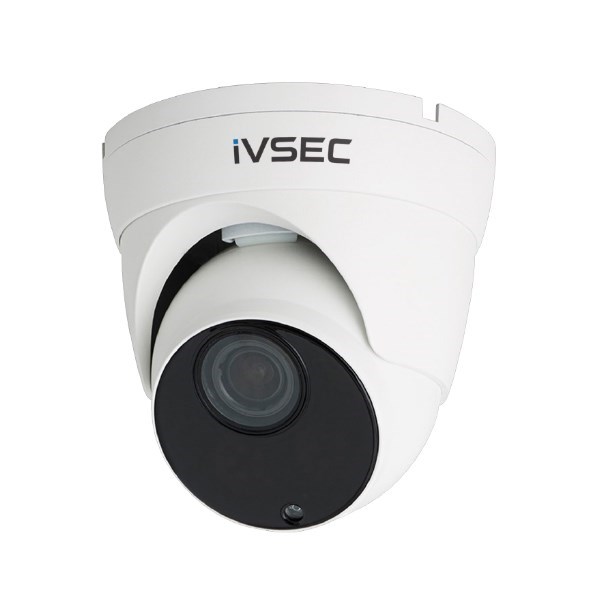

NC312XE Security Camera
Easy to install with a 2.8-12mm motorised lens. Control the optical zoom level on installation from the mobile app or NVR.
| Camera Type | Turret |
| Image Sensor | 1/2.7″ Progressive CMOS |
| Maximum Video Resolution Megapixels | 5 |
| Maximum Video Resolution | 2592 x 1944 |
| Lens | 2.8-12 mm H.FOV 116 to 34° |
| Lens Type | Motorised Zoom |
| Maximum Night IR Distance M | 40 |
| Video Compression | H.265 H.265 H.264 H.264 MJPEG |
| ONVIF depends on firmware version | ONVIF Profile S/G/T 21.12 or greater Http API |
| IP Rating | IP66 |
| Operating Environment | -30 – 55°C/less than ≤ 95 RH |
| Dimensions | Ø151 X 113mm |
| Weight Net | 0.8 |
| Accessories | IV2422X IV2433X |
| Power Supply | Power over Ethernet IEEE 802.3af DC12V |
| Power Consumption | <7W |
| Connectors | RJ-45 DC Power Input Reset Button |
| Outdoor Use | Yes |
| Vandal Resistant | Yes |
| Frame Rate at Resolution | 20 |
| Day/Night Mode | Auto |
| LED Types | IR |
| Image Enhancement | Flip mode Brightness Contrast Saturation Sharpness Hue Mirror Angle Flip Back Light White Balance Shutter Time Exposure Defog 3D Noise Reduction |
| Edge Recording microSD/SDHC Card | – |
| Multiple Streams encode format | 3 Streams |
| Audio Streaming | – |
| Protocols | TCP/IP UDP HTTP HTTPS DHCP FTP RTP/RTSP DNS DDNS NTP PPPOE UPNP SMTP SNMP P2P QR code |
| Intelligent Video IVS | Motion Detection |
| Cloud option camera only | Dropbox |
| Software | Device Search/Config Tool Surveillance Client CMS/VMS Mobile app QR code |
| Power Over Ethernet | Yes |
| Ethernet | Ethernet 10/100 Base-T |
| In The Box | Free Software available ivsecurity.com.au/support/software Printed quick user guide installation template mounting screws and plugs |
| Warranty | 3 Year Warranty |
