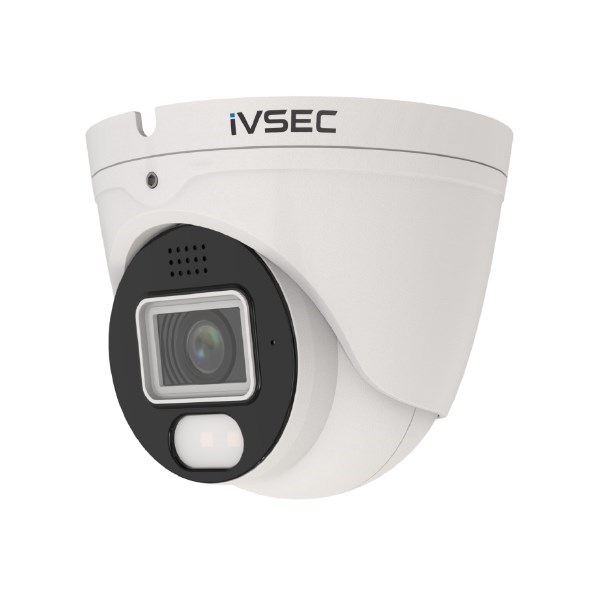

NC368ADX Security Camera
Full colour at night. Improvements have been made to the image sensor -1/1.8 enlarged image sensor enables more light to be gathered. Together with built-in warm-light LEDS this creates an excellent full colour image. Quality AI for Human and Vehicle Detection -a step-up from standard Smart Motion Detection with greater range of detection and reduced false notifications.
| Camera Type | Turret |
| Image Sensor | 1/1.8″ Progressive CMOS |
| Maximum Video Resolution Megapixels | 8 |
| Maximum Video Resolution | 3840 x 2160 |
| Lens | 2.8 mm H.FOV 112° |
| Lens Type | Fixed |
| Maximum Night IR Distance M | N/A |
| LED | Warm White Red & Blue |
| Video Compression | H.265 H.264 H.265 H.264 MJPGE |
| ONVIF depends on firmware version | ONVIF Profile S/G/T 21.12 or greater HTTP API |
| Accessories | IV2422X IV2433X IV2444X IV2455X IV2457X IV2477X |
| Outdoor Use | Yes |
| IP Rating | IP67 |
| Vandal Resistant | Yes |
| Day/Night Mode | Schedule Time Based Full colour or Day/Night Warm White LEDS |
| Image Enhancement | Smart IR Flip mode Brightness Contrast Saturation Sharpness Hue Corridor Mode Mirror Angle Flip Back Light White Balance Shutter Time Exposure Defog 3D Noise Reduction |
| Intelligent Video IVS | Face Recognition Human&Vehicle Detection Perimeter Intrusion Detection Line Crossing Detection Cross Counting Stationary Object Detection Heat Map Crowd Density Detection Queue Lenght Detection License Plate Detection Rare Sound Detection |
| Edge Recording microSD/SDHC Card | Micro SD/SDHC Card |
| Multiple Streams encode format | 3 Streams |
| Software | Device Search/Config Tool Surveillance Client CMS/VMS Mobile app QR code |
| Protocols | TCP/IP HTTP DHCP DNS DDNS RTP/RTSP SMTP NTP UPnP SNMP HTTPS FTP |
| Cloud option camera only | Dropbox |
| Audio Streaming | Yes microphone and speaker included |
| Ethernet | Ethernet 10/100 Base-T |
| Power Over Ethernet | Yes |
| Power Supply | Power over Ethernet IEEE 802.3af DC12V |
| Power Consumption | < 5.4W |
| Connectors | RJ-45 DC Power Input Reset Button |
| Operating Environment | -30ºC to 55ºC -22ºF-131ºF Humidity 20-80 RH |
| In The Box | Free Software available from FTP Printed quick user guide installation template mounting screws and plugs |
| Product Dimensions H x W x L mm | 115 x 115 x 98 |
| Weight Net kg | 0.4 |
| Warranty | 3 Year Warranty |
