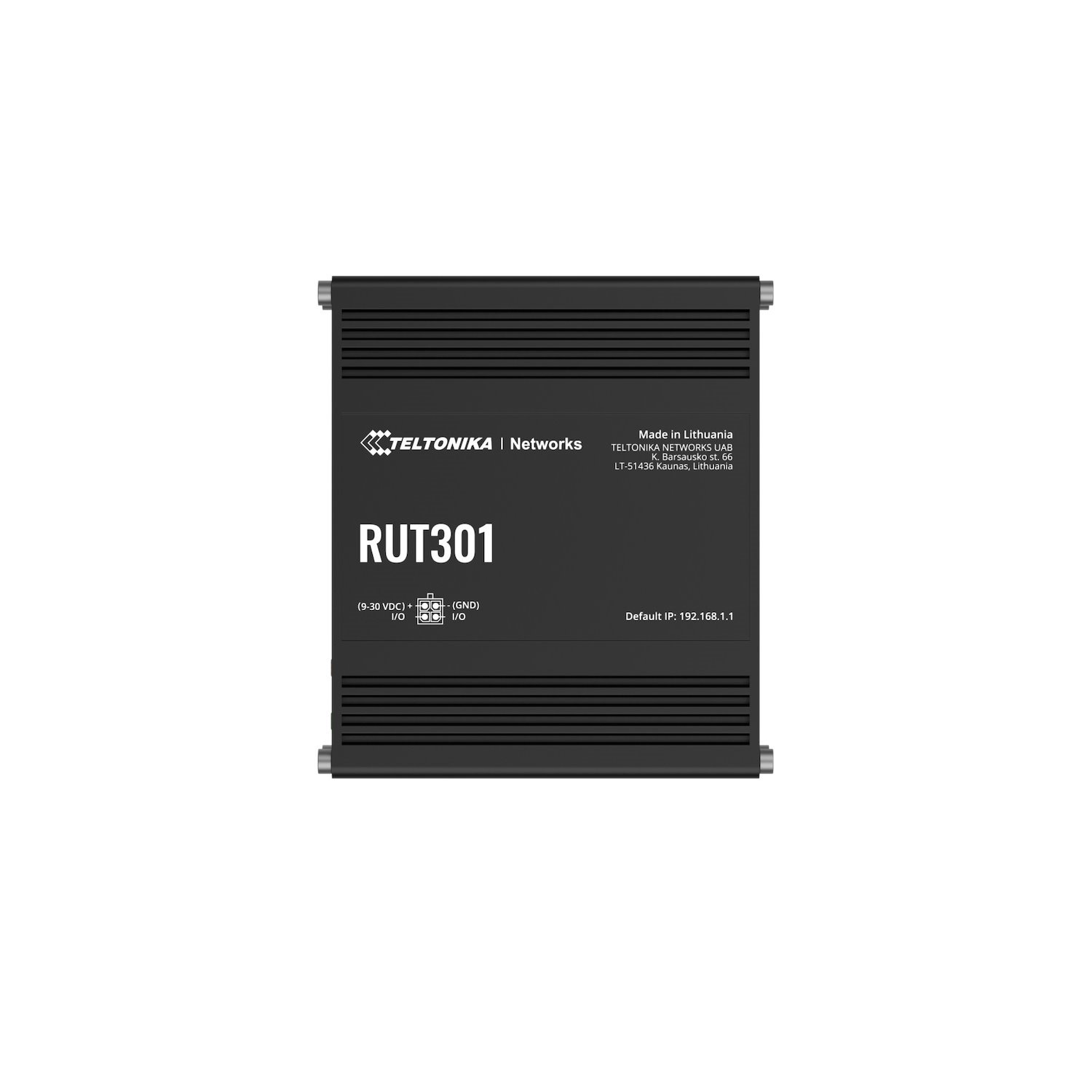

The Teltonika RUT301 is a highly cost-efficient industrial Ethernet router designed to provide robust network connectivity and advanced security for IoT applications. Housed in a durable aluminium casing, this compact device is engineered to withstand harsh environments with an operating temperature range from -40°C to 75°C. Its industrial-grade design makes it an ideal choice for automation, energy, utilities, smart city, and retail sectors requiring reliable 24/7 performance.

Equipped with five 10/100Mbps Ethernet ports (1xWAN and 4xLAN), the RUT301 ensures seamless integration with industrial machinery and enterprise equipment. The inclusion of two configurable digital inputs/outputs and a USB 2.0 port adds versatile interfacing options for external sensors or peripheral devices. This router is powered by RutOS, an OpenWrt-based Linux operating system, offering a familiar and highly customisable environment for advanced networking configurations.

Security is a core feature of the RUT301, boasting a pre-configured firewall and support for an extensive suite of VPN services including OpenVPN, IPsec, WireGuard, and ZeroTier. It supports multiple industrial communication protocols such as Modbus TCP, MQTT, and DNP3, facilitating easy data exchange in complex industrial ecosystems. The device also supports VLAN tagging for network separation and various attack prevention tools to safeguard against DDoS and port scans.

Management is simplified through the Teltonika Remote Management System (RMS), allowing for secure remote access, monitoring, and configuration of multiple devices simultaneously. With support for IoT platforms like Azure IoT Hub and Cumulocity, the RUT301 provides a scalable solution for modern industrial deployments. This package includes a 9W PSU, ensuring you have everything required for immediate installation and setup.

FEATURES

• Compact and durable aluminium housing for industrial environments
• Five 10/100Mbps Ethernet ports for flexible networking
• Advanced security suite with pre-configured firewall and multiple VPNs
• Support for industrial protocols including Modbus, MQTT, and DNP3
• Configurable digital I/O and USB 2.0 for external device connectivity
• Remote management capability via Teltonika RMS
• Wide operating temperature range from -40°C to 75°C

SPECIFICATIONS

• CPU: Mediatek, 580MHz, MIPS 24KEC
• RAM: 128MB, DDR2
• Flash Storage: 16MB serial NOR flash
• Ethernet Ports: 5xRJ45, 10/100Mbps (1xWAN, 4xLAN)
• Digital I/O: 2xConfigurable digital I/O on 4-pin power connector
• USB: 1xUSB 2.0 A port
• Operating System: RutOS (OpenWrt based Linux OS)
• Power Input: 9-30VDC, 4-pin industrial DC power socket
• Power Consumption: Idle: <0.8W, Max: <3.8W
• Casing Material: Aluminium housing
• Dimensions: 100x30x85mm
• Weight: 233g
• Ingress Protection: IP30
• Operating Temperature: -40°C to 75°C
• VPN Support: OpenVPN, IPsec, GRE, PPTP, L2TP, WireGuard, ZeroTier, Stunnel
• Industrial Protocols: Modbus TCP, MQTT, DNP3, DLMS/COSEM

WARRANTY

1-Year Limited Warranty
