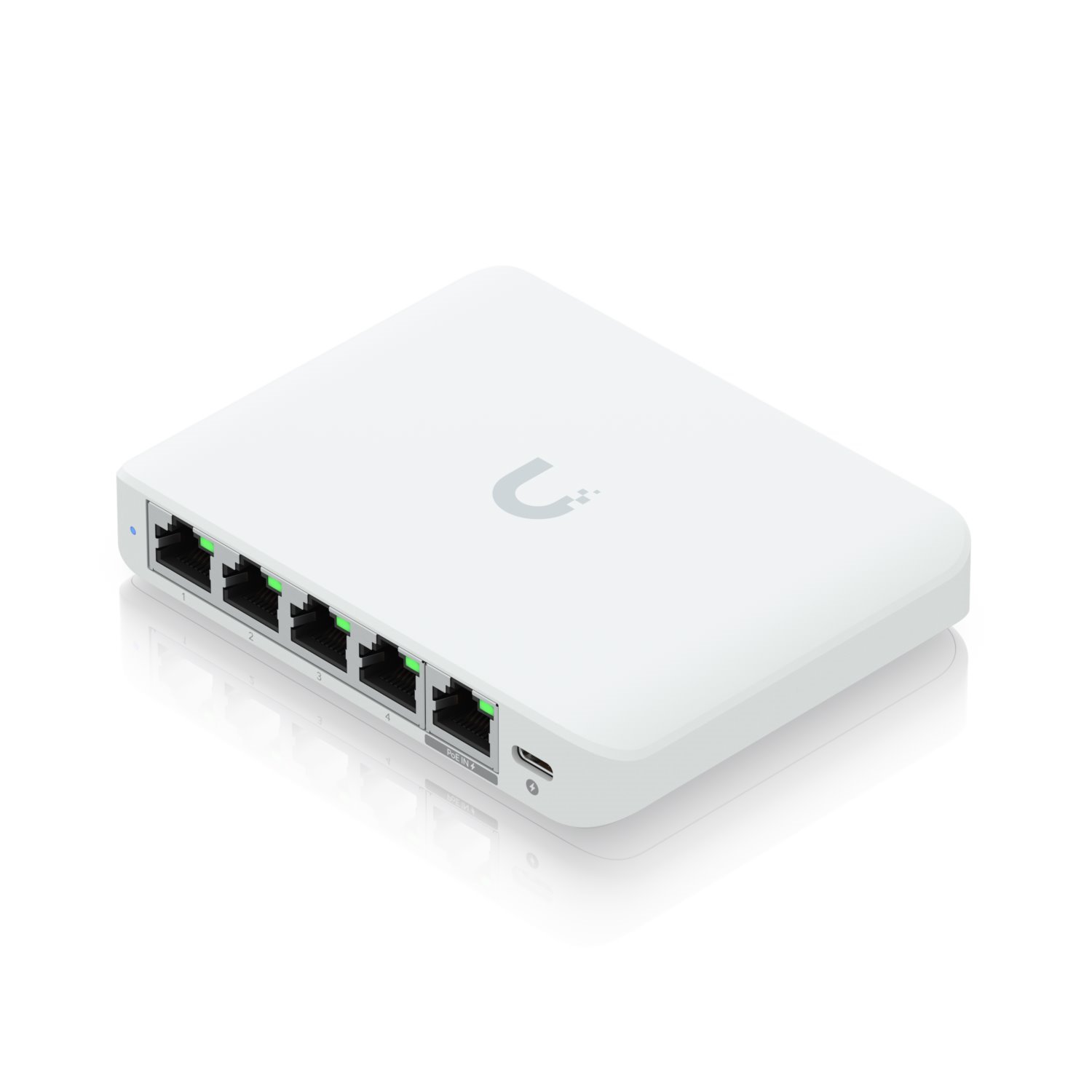

The Ubiquiti USW-Flex-2.5G-5 UniFi Compact 5-Port Gigabit Desktop Switch is a versatile and high-performance networking solution designed for both home and small business environments. This compact switch features four 2.5 Gigabit Ethernet (2.5GbE) ports, enabling lightning-fast data transfers for bandwidth-intensive applications and ensuring your network can handle the demands of modern devices like Wi-Fi 6 access points, high-speed NAS, and gaming PCs. Its intelligent design allows for flexible powering options, either through Power over Ethernet (PoE) on its dedicated 2.5GbE input port or via an included USB-C adapter, making integration into any existing setup seamless and hassle-free.
Engineered for efficiency, the USW-Flex-2.5G-5 boasts a fanless design for silent operation, making it ideal for quiet environments like home offices or living areas. Its robust polycarbonate enclosure ensures durability, while its compact form factor allows for discreet placement on a desktop or mounting in space-constrained locations. The switch seamlessly integrates with the UniFi ecosystem, providing centralised management and full visibility over your network through the intuitive UniFi Network application, simplifying setup and ongoing maintenance.
With its low power consumption, whether powered by PoE (6.4W max) or USB-C (5W max), this switch is an energy-efficient choice that helps reduce operational costs and environmental impact. The UniFi USW-Flex-2.5G-5 delivers reliable, high-speed connectivity, making it an excellent choice for upgrading your network infrastructure to meet the demands of tomorrow's technology today.
FEATURES
- (4) 2.5GbE RJ45 ports
- (1) 2.5GbE PoE input port for power
- Compact desktop form factor
- Fanless design for silent operation
- Flexible power options: PoE or USB-C adapter
- Seamless integration with UniFi Network application for centralised management
- Layer 2 switching features including STP/RSTP, Port Isolation, Storm Control, and Jumbo Frames
SPECIFICATIONS
- Dimensions: 117.1 x 90 x 21.2mm
- Weight: 206g
- Enclosure Material: Polycarbonate
- Management Interface: Ethernet In-Band
- Networking Interface: (5) 1/2.5GbE RJ45 ports
- Total Non-Blocking Throughput: 12.5Gbps
- Switching Capacity: 25Gbps
- Forwarding Rate: 18.6Mpps
- Supported VLANs: 256
- MAC Address Table Size: 4,000
- Power Method: (1) AC power adapter, 5V DC, 1A; (1) PoE (PairA 1,2+; 3,6-)(PairB 4,5+; 7,8-)
- Power Supply: External AC/DC adapter or UniFi PoE switch
- Supported Voltage Range: AC/DC input: 5V DC; PoE input: 44–57V DC
- Max. Power Consumption: AC/DC input: 5W; PoE input: 6.4W
- Button: Factory reset
- Ambient Operating Temperature: -20 to 45°C
- Ambient Operating Humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC, NDAA Compliant
- Application Requirements: UniFi Network version 8.6.9 and later (or 8.4.62 and later, depending on source)
WARRANTY
1-Year Limited Warranty
